Wireless B vs G vs N vs AC | What Is The Difference?

So you’re in the market to buy a wireless router. You’re doing your research to find the best router for you, but you’ve come to a crossroads. You have to make a decision: Do you want to buy a Wireless G, Wireless N or Wireless AC router? But more importantly, what is the difference? What is outdated? Is there an option for me if I just want to do basic things like read email and news? What if I play a lot of games and watch a lot of movies? You’ve come to the right place for the answers, my friend. Lets get you on the right track. By the time we’re done here, you will be able to make a confident decision. You’ll even be able to make recommendations to your friends and family when it’s their turn to buy a wireless router.

We’ll start out with a bit of technical information about each. In the end, we’ll relate this information to making a real-world decision based on your needs.

Name Speed Indoor Range Frequency Released
Wireless AC 1 Gbps 115 Feet 5 GHz 2013
Wireless N 300 Mbps 230 Feet 2.4 GHz, 5 GHz 2009
Wireless G 54 Mbps 125 Feet 2.4 GHz 2003
Wireless B 11 Mbps 115 Feet 2.4 GHz 1999

wireless g vs n wireless ac vs n

The WLAN Standard: 802.11

The Institute of Electrical and Electronics Engineers (IEEE) is an organized group of engineers. They created the standard for WiFi technology which all wireless routers will follow. They called this standard 802.11. All wireless routers at the time were built around this standard. There was no letter designation, such as “G”, “N” or “AC”. This 802.11 standard was released in 1997.

The main problem with this standard was that it was far too slow (about 2mbps… MegaBits Per Second). So they improved upon this standard. Today, wireless routers are not manufactured to this standard. This is where the different letter designations come in.

802.11 Enhancements

Before we move on, it’s important to note that B, G, and N are not the only extensions. It would make sense to start with Wireless A, right? That actually does exist. However, these other protocols either did not catch on as fast as others or serve a purpose other than for home networks. For example, Wireless A was released around the same time as Wireless B. However, Wireless B devices were cheaper so they were more popular with consumers. Wireless A devices were mainly used by businesses. So that’s why you won’t hear much about those while you shop for wireless routers for your home network today. If you’re still curious about these “other” standards, you can find good information about them by doing a quick search. Wikipedia has some good information about them, but it’s pretty technical so look out for that! Lets move on.

802.11B / What Is Wireless B?

wireless b

Routers with only Wireless B are no longer manufactured. However, some newer routers still support wireless B. So, it’s still important that you have some basic information about it. Wireless B supports a maximum theoretical transfer rate of 11mbps. The signal is good for up to about 150 feet. A downside to a Wireless B device is that it operates at the unregulated 2.4GHz frequency range. This is the same as many common household appliances. Things like cordless phones and microwaves can cause interference if your router is near these appliances. If you don’t place your router or computer near one of these appliances, you should be fine.

802.11G / What Is Wireless G?

wireless g

Wireless G supports a maximum theoretical transfer rate of 54mbps. Like Wireless B, it operates at the unregulated 2.4GHz frequency range. So it has the same interference issues that Wireless B has. Wireless G is backward compatiblewith Wireless B devices. Odds are that you don’t have a device that only supports Wireless B, but if you do then this is a benefit. As you can see, the main benefit of a Wireless G router over a Wireless B router is speed.

802.11N / What Is Wireless N?

wireless n

Wireless N supports a maximum theoretical transfer rate of 300mbps with 2 antennas. It can reach up to 450mbps with 3 antennas. Though typical speeds are more accurately around 130mbps or less without certain configurations and conditions being met. There will be a detailed post on this in the future. If you are curious, please subscribe to this blog and you will be notified when that post comes. It operates at both the 2.4GHz and 5GHz bands. These Wireless N devices can operate on multiple signals (called Multiple In – Multiple Out… or MIMO) and have 2 or 3 antennas. It also has increased signal range/power over Wireless G.

802.11AC / What Is Wireless AC?

wireless ac

The next big standard to hit the world is 802.11ac, or Wireless AC. Released in 2013, Wireless AC is sometimes referred to as Gigabit WiFi (1Gbps… 1 GigaBit Per Second). It will also have stronger signal strength than Wireless N, giving it greater coverage area. If you are looking for the latest edge in speed, or if you have a Wireless N router that doesn’t quite cover your whole home, you may want to consider a Wireless AC router.

Wireless G vs N, Wireless AC vs N: Which One Should I Buy?

The real choice here is going to be Wireless G vs N vs AC, because routers that only support Wireless B are no longer manufactured. Besides, Wireless G routers are backward compatible with Wireless B devices.

When You Should Buy A Wireless AC Router

  • When you have a large house and your wireless G router doesn’t quite reach all the rooms you want it to.
  • If you live in a highly populated area (apartment, mobile/modular park, etc.). A wireless AC router will help because it is new technology, so not many people will be running their home networks on the 5 GHz band. This will give you a very big speed advantage because your router won’t be competing with as many other routers using the same signal. (AC routers run on the 5GHz band while most N routers run on the 2.5 GHz band).
  • When you have entertainment systems such as Xbox One or Playstation 4 playing against other people online AND you want your other computers to be able to stream video at the same time without taking much of a performance hit.
Best Wireless AC Routers

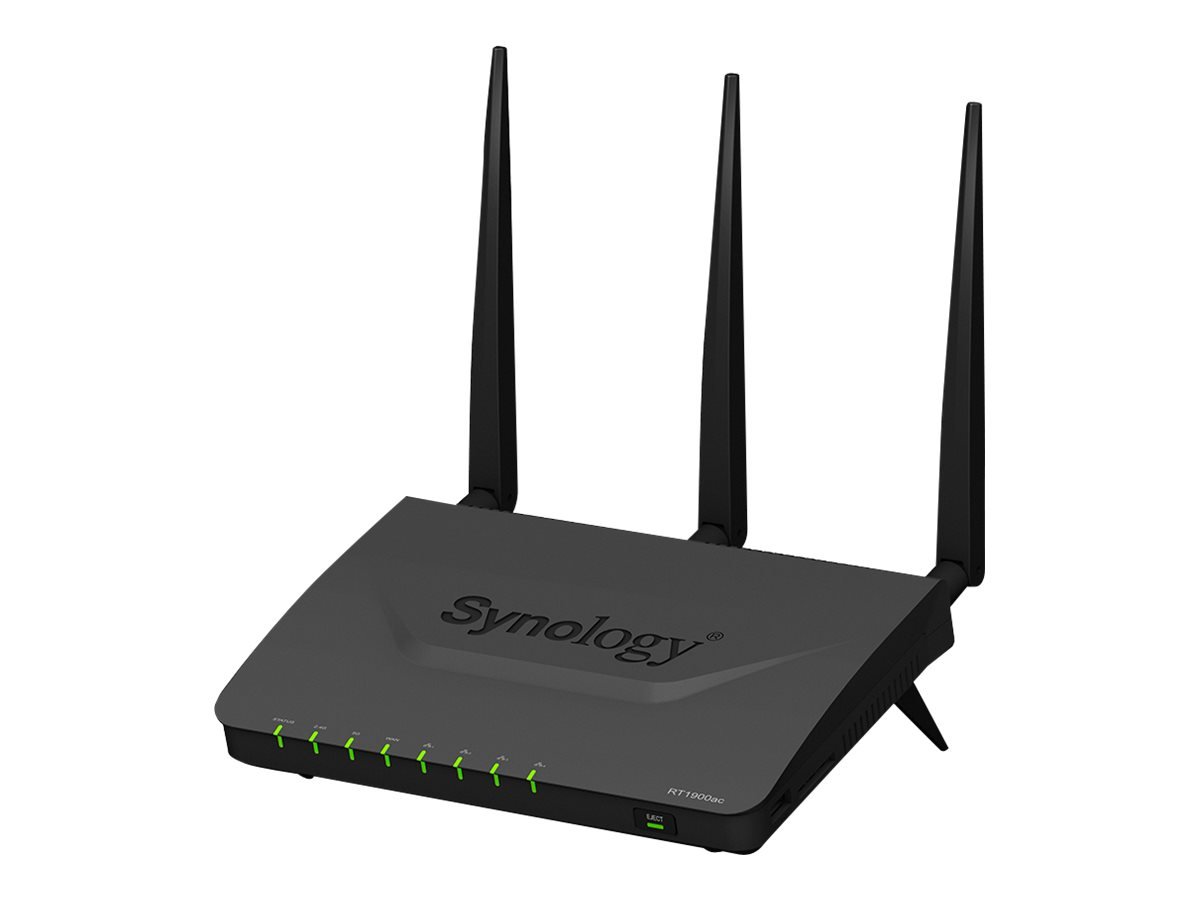

Synology RT1900ac

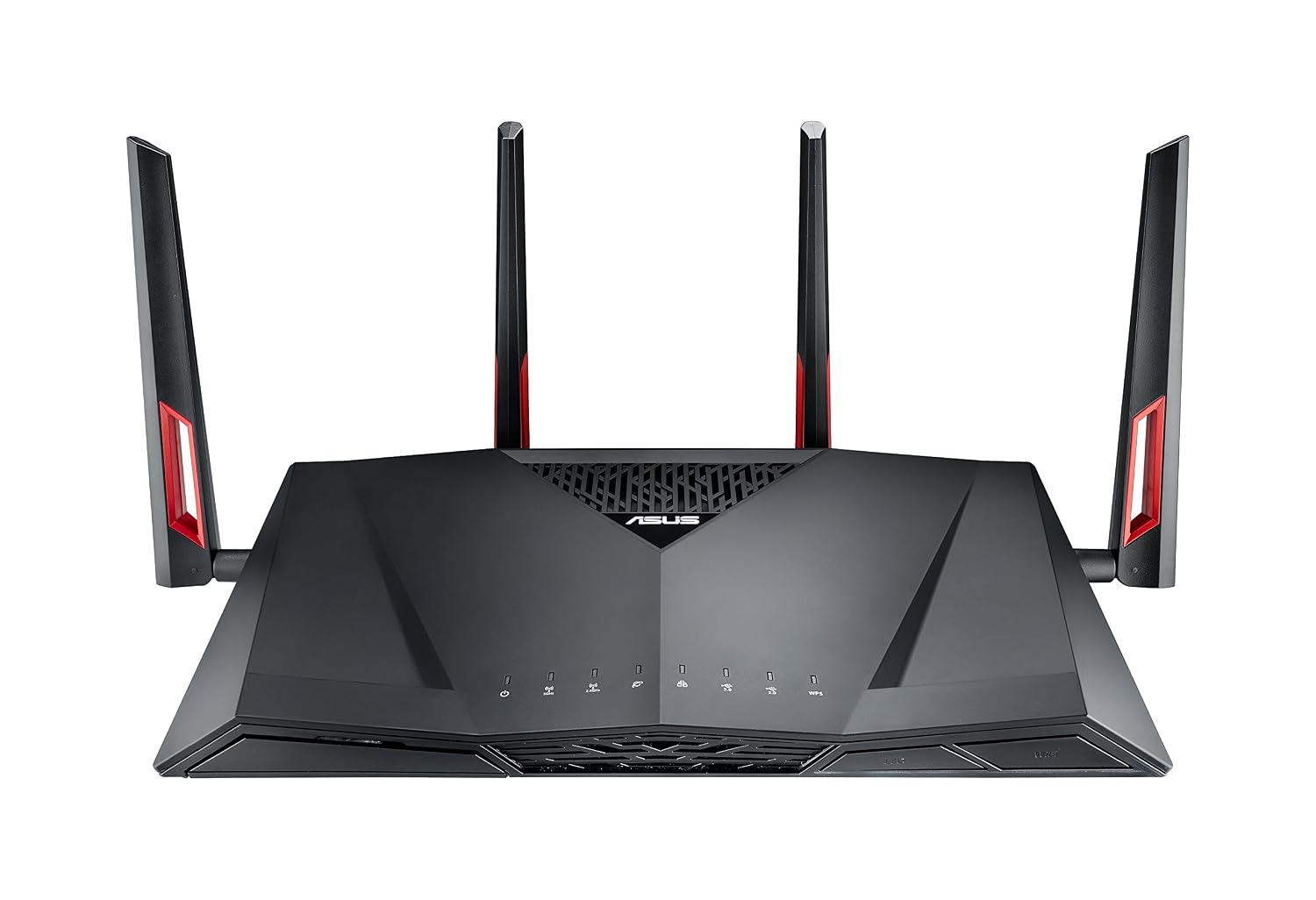

ASUS RT-AC88U

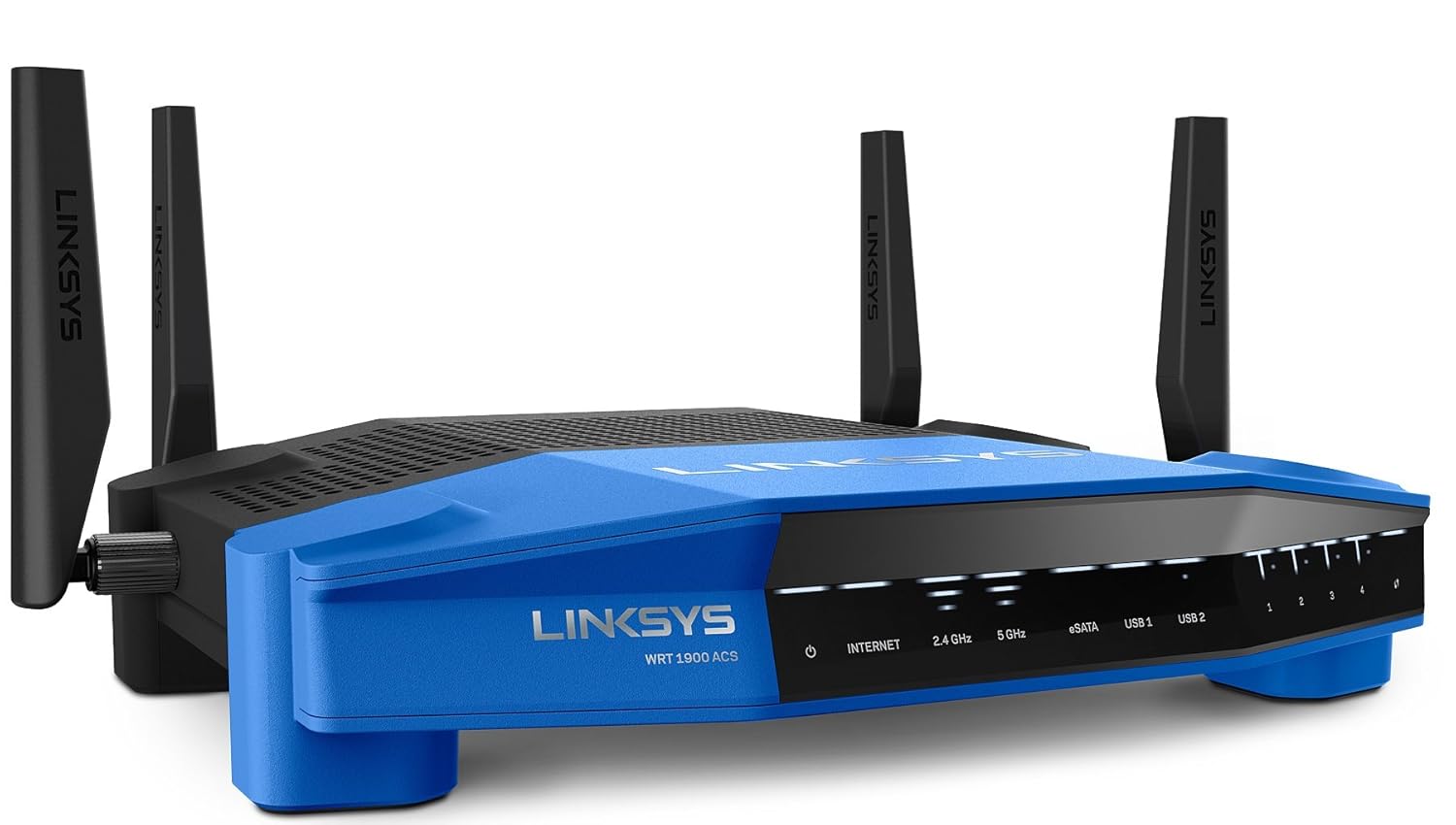

Linksys AC1900

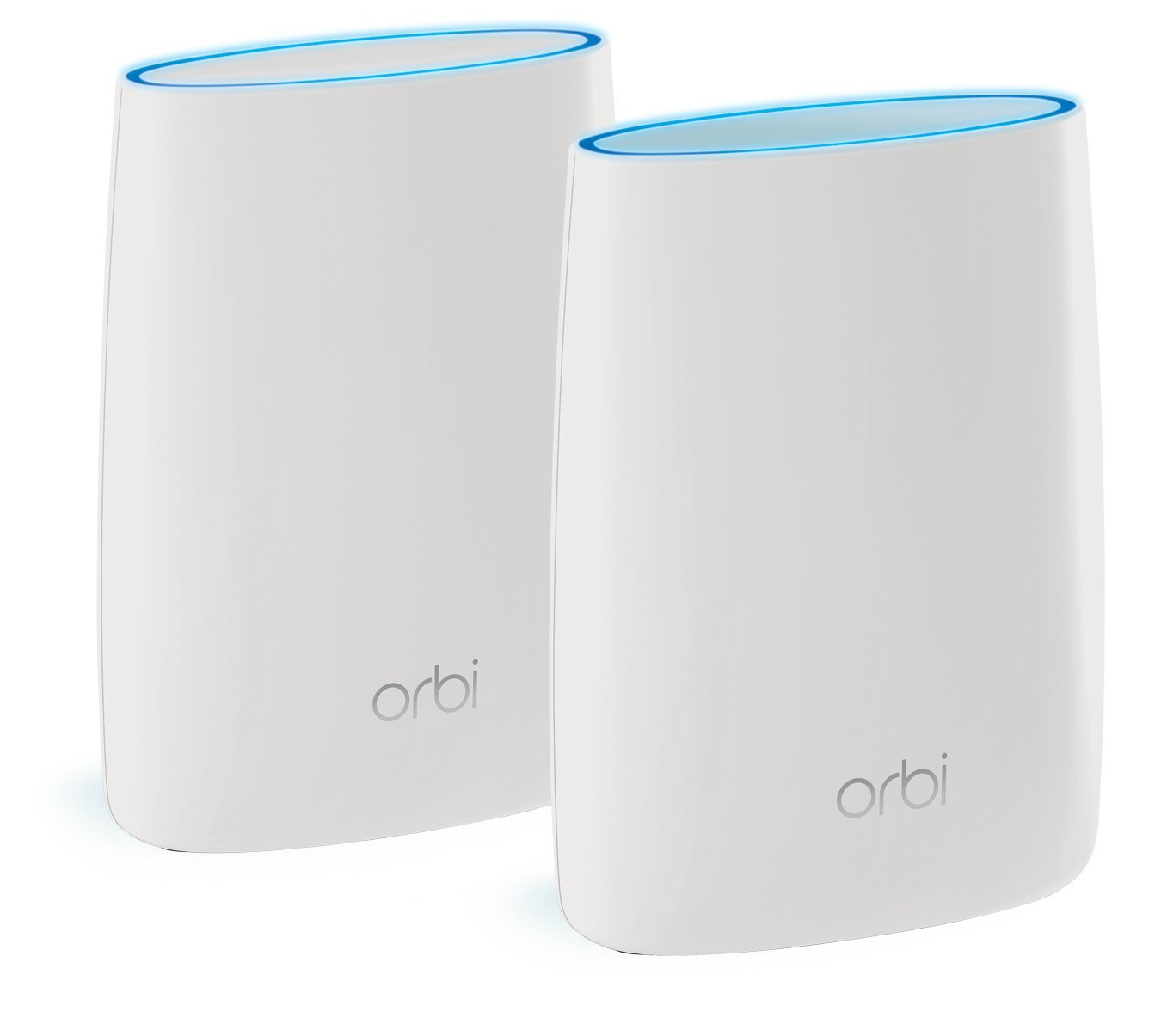

Netgear Orbi Home WiFi System

When You Should Buy A Wireless N Router

  • When you have several computers in your house using high-bandwidth sites such as YouTube or Netflix very often at the same time.
  • If you download a lot of large files very often
  • When you have newer entertainment systems such as Xbox One or Playstation 4 and you are playing against other people online (these devices do support Wireless N out of the box)
  • Shop for Wireless N Routers on Amazon

When You Should Buy A Wireless G Router

  • When you only have one or a few computers in your house.
  • When the great majority of your internet use will be for checking email and reading news or blogs. You should be able to watch YouTube or Netflix videos on a single device at a time.
  • When you have older entertainment systems such as Xbox 360 or PlayStation 3 and you are playing against other people online (these devices do not support Wireless N out of the box, unless you have the Xbox E which does support Wireless N)
  • Shop for Wireless G Routers on Amazon

More Things to Consider

You will want to make sure the wireless interfaces on your devices support each technology. Not all devices support Wireless AC, for example. Check with the manufacturer of your device to see what technology is supported.
